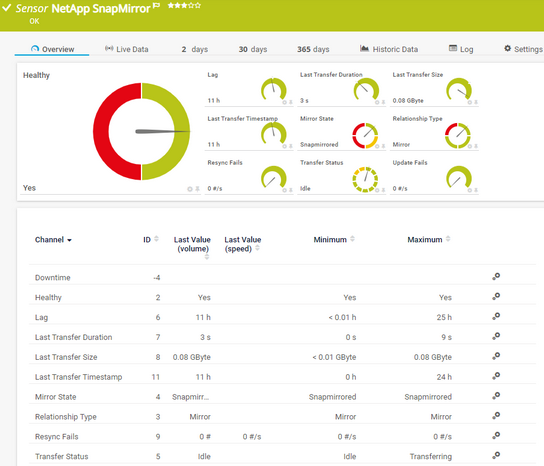

<%NUMBERING1%>.<%NUMBERING2%>.<%NUMBERING3%> PRTG Manual: NetApp SnapMirror Sensor

This sensor supports NetApp cDOT as of version 8.3 or ONTAP from versions 9.0 to 9.12. If you use ONTAP as of version 9.6, we recommend to use the NetApp SnapMirror v2 sensor.

Enabled ONTAPI access

NetApp sensors require access to ONTAPI for the utilized user account. This is enabled by default. If access is disabled, locally use the following command on the cluster console to enable ONTAPI access for the user:

services web> modify -vserver clusterd -name ontapi -enabled true

.NET 4.7.2 or later

This sensor requires .NET 4.7.2 or later to be installed on the probe system (on every cluster node, if on a cluster probe).

If the framework is missing, you cannot create this sensor.

For more information, see the Knowledge Base: Which .NET version does PRTG require?

Sensor Name

Enter a name to identify the sensor. By default, PRTG shows this name in the device tree, as well as in alarms, logs, notifications, reports, maps, libraries, and tickets.

If the name contains angle brackets (<>), PRTG replaces them with braces ({}) for security reasons. For more information, see the Knowledge Base: What security features does PRTG include?

Parent Tags

The tags that the sensor inherits from its parent device, parent group, and parent probe.

This setting is for your information only. You cannot change it.

Tags

Enter one or more tags. Confirm each tag with the Spacebar key, a comma, or the Enter key. You can use tags to group objects and use tag-filtered views later on. Tags are not case-sensitive. Tags are automatically inherited.

It is not possible to enter tags with a leading plus (+) or minus (-) sign, nor tags with parentheses (()) or angle brackets (<>).

For performance reasons, it can take some minutes until you can filter for new tags that you added.

The sensor has the following default tags that are automatically predefined in the sensor's settings when you add the sensor:

• cdot
• netapp
• ontap
• soap

Priority

Select a priority for the sensor. This setting determines the position of the sensor in lists. The highest priority is at the top of a list. Choose from the lowest priority () to the highest priority ().

NetApp Credentials

Specify which credentials you want to use to connect to the NetApp API:

• Use explicit credentials: Use individual NetApp API credentials.
• Use Windows credentials from parent device: Use the credentials (User Name and Password) in the parent device settings in section Credentials for Windows Systems.
  Defining credentials in the parent device is useful if you add several NetApp sensors to this device because you do not need to individually enter credentials for each NetApp sensor.

User Name

This setting is only visible if you select Use explicit credentials above.

Enter a user name for access to the NetApp API. Enter a string.

Read-only rights for this ONTAP user account are sufficient.

Password

This setting is only visible if you select Use explicit credentials above.

Enter the password of the user for access to the NetApp API. Enter a string.

Port

Enter a port number on which you can access the NetApp API. Enter an integer. The default port is 443.

Connection Security

Define if the connection to the NetApp API is Secure Sockets Layer (SSL)/Transport Layer Security (TLS) secured:

• HTTP: Use an unsecured HTTP connection.
• HTTPS: Use a secure connection to the defined port to send the query.

Timeout (Sec.)

Enter a timeout in seconds for the request. Enter an integer. The maximum timeout value is 900 seconds (15 minutes).

If the reply takes longer than this value, the sensor cancels the request and shows a corresponding error message.

SnapMirrors

The SnapMirror that this sensor monitors.

Result Handling

Define what PRTG does with the sensor result:

• Discard result (default): Do not store the sensor result.

• Store result: Store the last sensor result in the \Logs\sensors subfolder of the PRTG data directory on the probe system. The file names are Result of Sensor [ID].txt, Result of Sensor [ID].Data.txt, and Result of Sensor [ID].log. This setting is for debugging purposes. PRTG overwrites these files with each scanning interval.

This option is not available when the sensor runs on the hosted probe of a PRTG Hosted Monitor instance.

In a cluster, PRTG stores the result in the PRTG data directory of the master node.

Primary Channel

Select a channel from the list to define it as the primary channel. In the device tree, the last value of the primary channel is always displayed below the sensor's name. The available options depend on what channels are available for this sensor.

You can set a different primary channel later by clicking below a channel gauge on the sensor's Overview tab.

Graph Type

Define how different channels are shown for this sensor:

• Show channels independently (default): Show a graph for each channel.
• Stack channels on top of each other: Stack channels on top of each other to create a multi-channel graph. This generates a graph that visualizes the different components of your total traffic.
  You cannot use this option in combination with manual Vertical Axis Scaling (available in the channel settings).

Stack Unit

This setting is only visible if you select Stack channels on top of each other above.

Select a unit from the list. All channels with this unit are stacked on top of each other. By default, you cannot exclude single channels from stacking if they use the selected unit. However, there is an advanced procedure to do so.

Downtime

In the channel table on the Overview tab, this channel never shows any values. PRTG uses this channel in graphs and reports to show the amount of time in which the sensor was in the Down state

Healthy

If the system is healthy

• Up status: Yes
• Down status: No

This channel is the primary channel by default.

Lag

The lag transfer duration

Last Transfer Duration

The last transfer duration

Last Transfer Size

The last transfer size

Last Transfer Timestamp

The time stamp of the last transfer

Mirror State

The mirror status

• Up status: Snapmirrored
• Warning status: Uninitialized
• Down status: Broken-Off, Unknown

Relationship Type

The relationship type

• Up status: Mirror, Mirror and Vault, Vault
• Down status: Unknown

Resync Fails

The number of resynchronization fails

Transfer Status

The transfer status (relationship status returned from the API)

• Up status: Aborting, Checking, Finalizing, Idle, Preparing, Queued, Quiesced, Quiescing, Transferring
• Warning status: Breaking, Unknown

Update Fails

The number of update fails
