<%NUMBERING1%>.<%NUMBERING2%>.<%NUMBERING3%> PRTG Manual: SMTP&IMAP Round Trip Sensor

Sensor Name

Enter a name to identify the sensor. By default, PRTG shows this name in the device tree, as well as in alarms, logs, notifications, reports, maps, libraries, and tickets.

If the name contains angle brackets (<>), PRTG replaces them with braces ({}) for security reasons. For more information, see the Knowledge Base: What security features does PRTG include?

Parent Tags

The tags that the sensor inherits from its parent device, parent group, and parent probe.

This setting is for your information only. You cannot change it.

Tags

Enter one or more tags. Confirm each tag with the Spacebar key, a comma, or the Enter key. You can use tags to group objects and use tag-filtered views later on. Tags are not case-sensitive. Tags are automatically inherited.

It is not possible to enter tags with a leading plus (+) or minus (-) sign, nor tags with parentheses (()) or angle brackets (<>).

For performance reasons, it can take some minutes until you can filter for new tags that you added.

The sensor has the following default tags that are automatically predefined in the sensor's settings when you add the sensor:

• imapsensor
• mailsensor
• roundtrip

Priority

Select a priority for the sensor. This setting determines the position of the sensor in lists. The highest priority is at the top of a list. Choose from the lowest priority () to the highest priority ().

From

Specify the email address of the email's sender. Enter a valid email address.

To

Specify the address that PRTG sends the emails to. Enter a valid email address.

You can only enter one email address.

HELO Ident

Enter a server name for the HELO part of the mail protocol.

For some mail servers, the HELO identifier must be the valid principal host domain name for the client host. For more information, see SMTP RFC 2821.

Only ASCII characters are allowed.

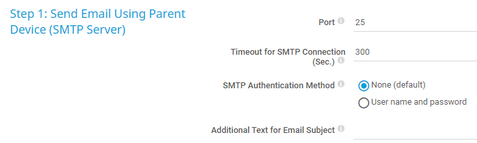

Port

Enter the number of the port that the sensor uses to send an email via SMTP. The default port for unsecure connections is 25 and the default ports for secure connections are 465 or 587. The actual setting depends on the server that you connect to. Enter an integer.

We recommend that you use the default value.

If the connection is unsuccessful, try a different port number.

Timeout for SMTP Connection (Sec.)

Enter a timeout in seconds for the request. Enter an integer. The maximum timeout value is 900 seconds (15 minutes).

If the reply takes longer than this value, the sensor cancels the request and shows a corresponding error message.

SMTP Authentication Method

Define if you want to use authentication for the SMTP connection:

• None: Do not use any authentication method.
• User name and password: Authenticate against the SMTP server via user name and password.

User Name

This setting is only visible if you select User name and password above.

Enter a user name for SMTP authentication. Enter a string.

Password

This setting is only visible if you select User name and password above.

Enter a password for SMTP authentication. Enter a string.

Additional Text for Email Subject

PRTG automatically creates the subject part of the round trip email. The subject consists of the string PRTG Roundtrip Mail:, followed by a unique globally unique identifier (GUID) to correctly identify the email in the IMAP mailbox, for example, PRTG Roundtrip Mail: {5E858D9C-AC70-466A-9B2A-55630165D276}.

Use this field to place your custom text before the automatically created text.

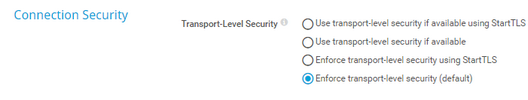

Transport-Level Security

Define how the sensor handles the security of the connection:

• Use transport-level security if available using StartTLS (default): Try to connect to the server via a Secure Sockets Layer (SSL)/Transport Layer Security (TLS) secured connection and StartTLS. If the server does not support this, the sensor tries to connect without connection security.
• Use transport-level security if available: Try to connect to the server via an SSL/TLS-secured connection. If the server does not support this, the sensor tries to connect without connection security.
• Enforce transport-level security using StartTLS: Try to connect to the server via an SSL/TLS-secured connection and StartTLS. If the server does not support this, the sensor shows the Down status.
• Enforce transport-level security: Try to connect to the server via an SSL/TLS-secured connection. If the server does not support this, the sensor shows the Down status.

If the sensor connects to a server via StartTLS, the connection is first established without connection security. After the connection has been established, the sensor sends a certain command (StartTLS) over the unsecured connection to negotiate a secure connection via SSL/TLS.

If the sensor does not use StartTLS, the negotiation of a secure connection happens immediately (implicitly) so that no commands are sent in unencrypted plain text. If no secure connection is possible, no communication takes place.

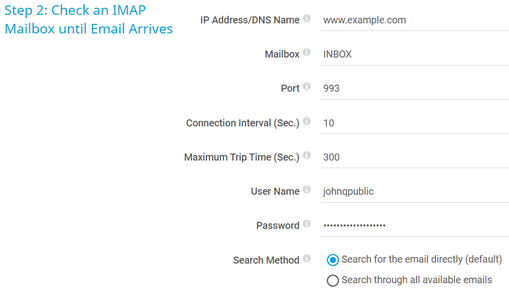

IP Address/DNS Name

Specify the IMAP server. Enter a valid IP address or Domain Name System (DNS) name.

Mailbox

Specify the IMAP mailbox that you want to check. Enter the IMAP mailbox or folder name, for example INBOX.

The IMAP mailbox or folder name must not match the sender of the email in the From field. Otherwise, the sensor might incorrectly interpret unsuccessful round trips as successful.

Port

Specify the port that the sensor uses for the IMAP connection. The default port for unsecure connections is 143 and the default port for secure connections is 993. The actual setting depends on the server you connect to.. Enter an integer.

We recommend that you use the default value.

If the connection is unsuccessful, try a different port number.

Connection Interval (Sec.)

Enter the number of seconds the sensor waits between two connections to the IMAP server. PRTG repeatedly checks the mailbox in this scanning interval until the email arrives. Enter an integer.

Maximum Trip Time (Sec.)

Enter the maximum number of seconds an email can take to arrive in the IMAP mailbox. PRTG continuously checks the mailbox in this scanning interval until the email arrives. If it does not arrive within the maximum trip time, the sensor shows an error message. Enter an integer.

User Name

Enter a user name for IMAP authentication. Enter a string.

Password

Enter a password for IMAP authentication. Enter a string.

The password must not contain spaces, percent signs (%), or the character combination !*.

Search Method

Define how to search for the round trip email in the mailbox:

• Search for the email directly (default): Send a SEARCH command to directly find the round trip email on the IMAP server.
• Search through all available emails: Search through all available emails in the mailbox locally to find the round trip email. This might take some time if you have many emails in your mailbox.

Transport-Level Security

Define how the sensor handles the security of the connection:

• Use transport-level security if available using StartTLS (default): Try to connect to the server via a Secure Sockets Layer (SSL)/Transport Layer Security (TLS) secured connection and StartTLS. If the server does not support this, the sensor tries to connect without connection security.
• Use transport-level security if available: Try to connect to the server via an SSL/TLS-secured connection. If the server does not support this, the sensor tries to connect without connection security.
• Enforce transport-level security using StartTLS: Try to connect to the server via an SSL/TLS-secured connection and StartTLS. If the server does not support this, the sensor shows the Down status.
• Enforce transport-level security: Try to connect to the server via an SSL/TLS-secured connection. If the server does not support this, the sensor shows the Down status.

If the sensor connects to a server via StartTLS, the connection is first established without connection security. After the connection has been established, the sensor sends a certain command (StartTLS) over the unsecured connection to negotiate a secure connection via SSL/TLS.

If the sensor does not use StartTLS, the negotiation of a secure connection happens immediately (implicitly) so that no commands are sent in unencrypted plain text. If no secure connection is possible, no communication takes place.

Result Handling

Define what PRTG does with the sensor result:

• Discard result (default): Do not store the sensor result.

• Store result: Store the last sensor result in the \Logs\sensors subfolder of the PRTG data directory on the probe system. The file names are Result of Sensor [ID].txt and Result of Sensor [ID].Data.txt. This setting is for debugging purposes. PRTG overwrites these files with each scanning interval.

This option is not available when the sensor runs on the hosted probe of a PRTG Hosted Monitor instance.

In a cluster, PRTG stores the result in the PRTG data directory of the master node.

Primary Channel

Select a channel from the list to define it as the primary channel. In the device tree, the last value of the primary channel is always displayed below the sensor's name. The available options depend on what channels are available for this sensor.

You can set a different primary channel later by clicking below a channel gauge on the sensor's Overview tab.

Graph Type

Define how different channels are shown for this sensor:

• Show channels independently (default): Show a graph for each channel.
• Stack channels on top of each other: Stack channels on top of each other to create a multi-channel graph. This generates a graph that visualizes the different components of your total traffic.
  You cannot use this option in combination with manual Vertical Axis Scaling (available in the channel settings).

Stack Unit

This setting is only visible if you select Stack channels on top of each other above.

Select a unit from the list. All channels with this unit are stacked on top of each other. By default, you cannot exclude single channels from stacking if they use the selected unit. However, there is an advanced procedure to do so.

Downtime

In the channel table on the Overview tab, this channel never shows any values. PRTG uses this channel in graphs and reports to show the amount of time in which the sensor was in the Down state

Response Time (IMAP)

The response time of the IMAP server

Response Time (SMTP)

The response time of the SMTP server

Total

The sum of the response time of the IMAP server and the SMTP server

This channel is the primary channel by default.
